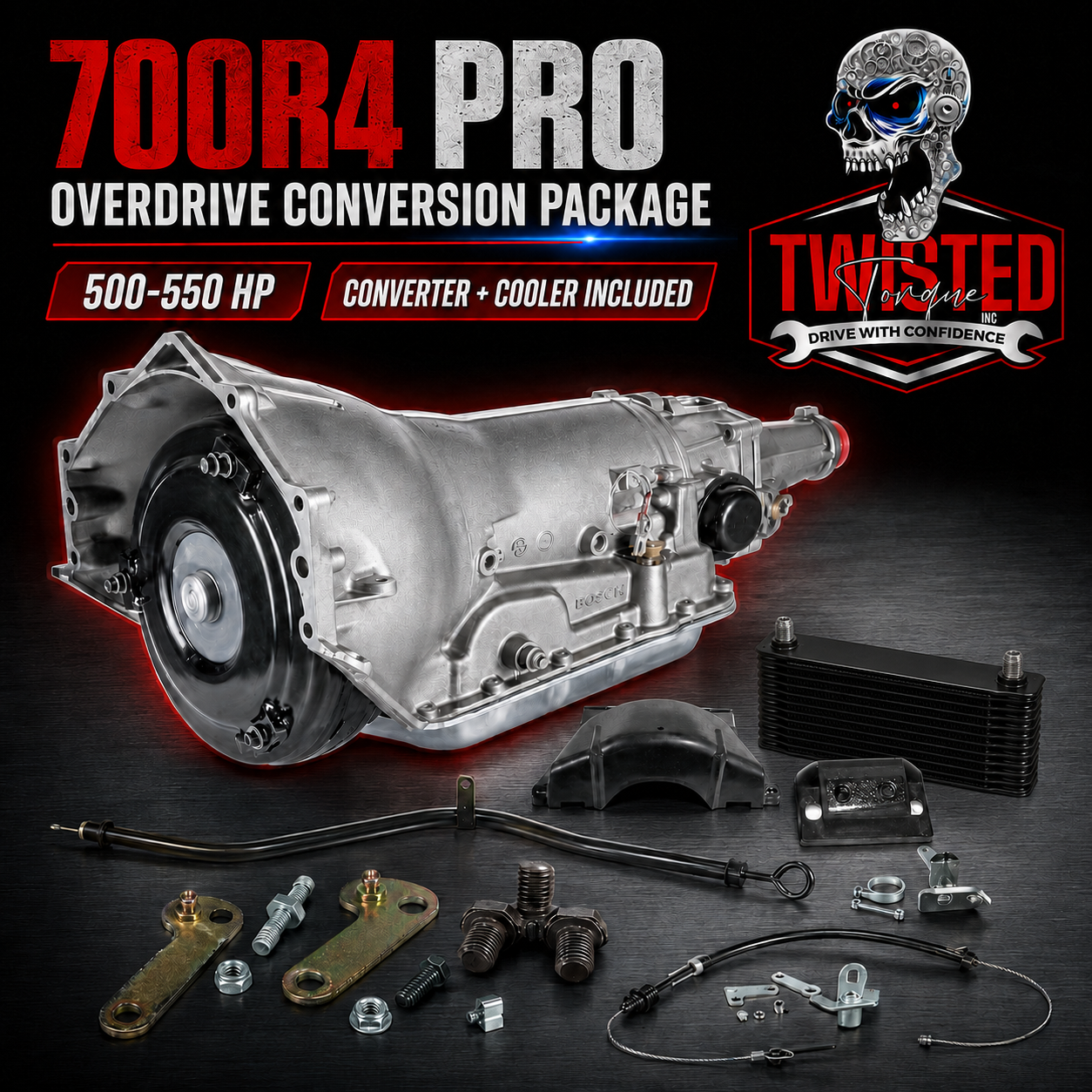

🔥 Twisted™ 700R4 Pro™ Overdrive Conversion Package

💪 Rated 500–550 HP

Stronger. Faster. Built for Real Street Power.

The Twisted™ 700R4 Pro™ Overdrive Conversion Package is engineered for serious street and street/strip vehicles producing 500–550 horsepower.

A major step above our Street™ build, the Pro™ delivers increased clutch capacity, stronger hard parts and improved hydraulic control while maintaining dependable overdrive performance and street-friendly operation.

Ideal for high-output small-blocks, 383 strokers, LS swaps and aggressive street combinations that need increased strength without moving into a full race transmission.

🔧 Twisted Pro™ 700R4 Build

• Master Overhaul Kit – Replaces seals, gaskets and wear items.
• Twisted Torque™ Pro Clutches and Steels – Increased holding power and heat resistance.
• Maximum-Capacity 3–4 Clutch Pack – Strengthens the 700R4’s primary factory weakness.
• Reinforced Input Drum – Supports the upgraded clutch pack under higher torque.
• Hardened 30-Spline Input Shaft – Improves strength during hard acceleration.
• Wide High-Energy 2–4 Band – Provides increased holding power and heat resistance.
• Hardened HD Sun Shell – Prevents stripped splines and broken hubs.
• Hardened Stator Support – Adds strength at a critical load point.
• Heavy-Duty Reaction Shaft – Reduces spline wear and twisting under load.
• 5-Pinion Front Planetary – Improves load distribution over the factory design.
• New Sprag Assembly – Replaces a common internal wear point.
• Complete New Bushing and Bearing Kit – Restores support and internal clearances.
• High-Performance Pump Assembly – Provides dependable pressure under increased load.
• Hardened Pump Rings – Replaces weak factory-style rings.
• .500 Boost Valve – Improves line-pressure response under throttle.
• Pro-Calibrated Valve Body – Provides quicker clutch apply and controlled shifts.
• Application-Specific Performance Servo – Matched to vehicle use and desired shift feel.
• Updated TV System – Helps prevent low pressure and clutch failure.
• New High-Flow Filter – Supports clean and consistent fluid flow.
• Shallow Chrome Transmission Pan
• All Factory-Recommended Updates Performed

Servo size and shift calibration are selected according to vehicle weight, horsepower and intended use. An excessively large servo can create shifts that are too firm for some street customers.

Optional Rear Planetary Upgrade

• 5-Pinion Rear Planetary – Add $350

Recommended for heavier vehicles, sticky tires, frequent hard launches, moderate power adders or combinations operating near the 550 HP limit.

🔥 Performance Lockup Converter Included

• Heavy-duty performance lockup converter
• Approximately 1800–2100 RPM stall
• Furnace-brazed internal construction
• Improved throttle response and launch
• Maintains lockup for highway cruising
• Matched to the customer’s engine and vehicle
• Higher-stall and billet converter upgrades available

🔄 Overdrive Conversion Accessories Included

• TV cable
• Throttle and TV cable bracket
• Speedometer adapter
• Transmission mount
• Dust cover
• Dipstick and tube
• Torque converter bolts
• Internal fourth-gear lockup
• Two-can transmission cooler line flush kit
• Hayden Cooler (External Cooler)-A Hayden auxiliary transmission cooler is included with every Pro™ conversion package. Cooler size and model are selected according to vehicle weight, horsepower, towing requirements, available mounting space and intended use.

Converter lockup may be activated through a switched 12-volt source, brake-switch circuit, toggle switch or vehicle-specific lockup controller.

🚗 Typical Applications

• Chevy 350
• 383 stroker
• 400 small-block
• Approved mild big-block combinations
• Camaro and Firebird
• C10 and C/K-series trucks
• K5 Blazer
• Street rods and hot rods
• Carbureted LS conversions
• Standalone LS swaps
• Powerglide, TH350 and TH400 overdrive conversions

Final compatibility depends on the engine, flexplate, converter pattern, crossmember, driveshaft, gearing and TV cable setup.

✅ Ideal For

• High-performance street builds
• Street and strip vehicles
• High-horsepower weekend cruisers
• Moderate power-adder combinations
• Heavier performance vehicles
• Customers wanting performance with highway overdrive
•


⭐ Built the Twisted Torque™ Way

Every Twisted Pro™ 700R4 is:

• Built in-house for the customer’s application
• Assembled with premium performance parts
• Calibrated for real-world street power
• Endplay and clutch clearances set during assembly
• Pressure-tested and inspected before shipment
• Supported by real builders and technical support

⚠️ Important Installation Requirements

• The transmission cooler and cooler lines must be professionally flushed or replaced before installation.
• Proper TV cable geometry and adjustment are required for transmission operation and warranty coverage.
• TV pressure must rise immediately with throttle movement.
• Engine problems, improper tuning, contaminated coolers, inadequate cooling and excessive crankshaft endplay must be corrected before installation.
• A properly sized external transmission cooler is strongly recommended.

📞 Technical Support

833-858-9612

Drive With Confidence. Drive Twisted™.
