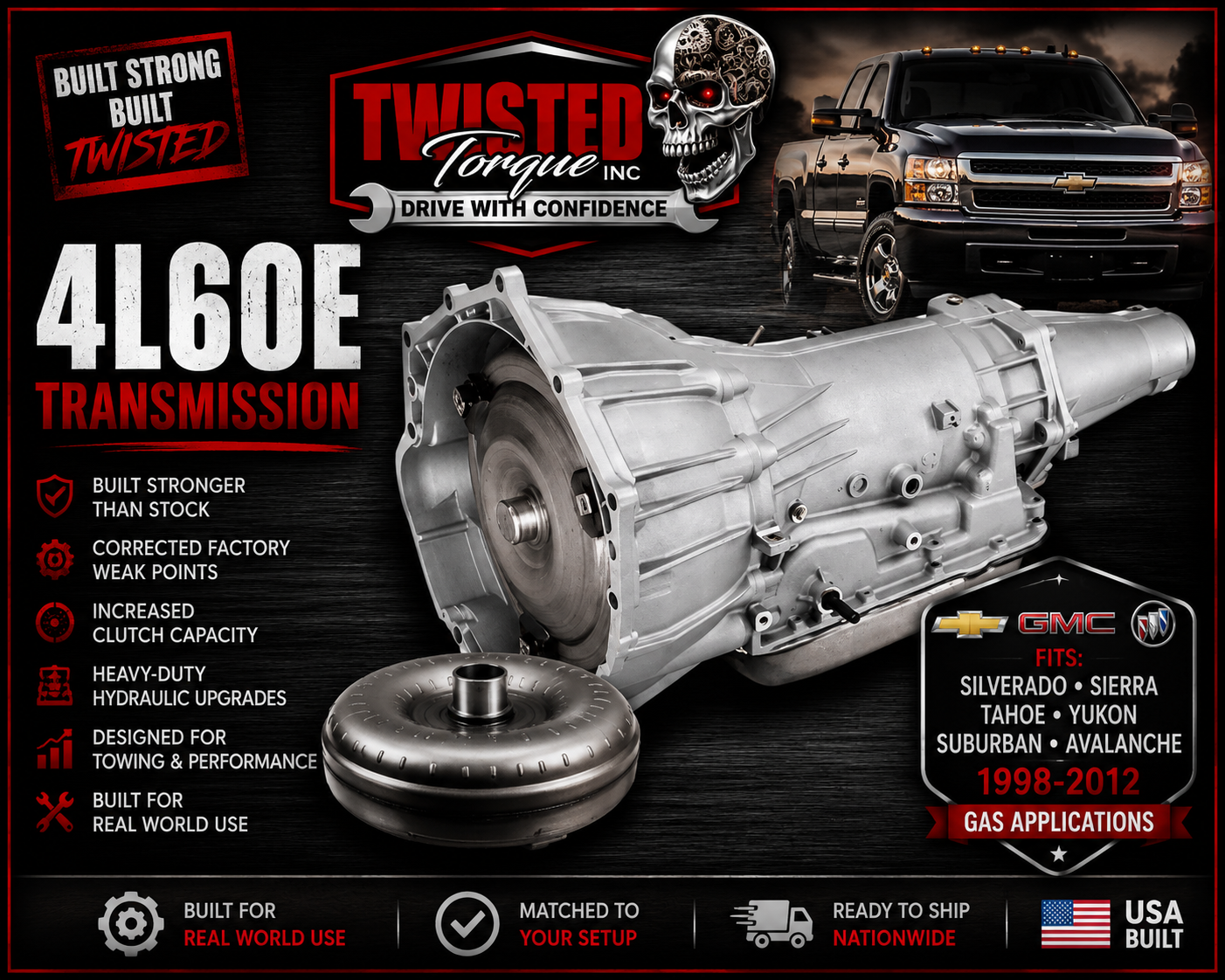

🔥 Twisted Executioner™ 4L60E Performance Transmission (Up to 750 HP)

1998–2010 4L60E / 4L65E / 4L70E • Built to Order

Maximum Strength. Billet Hard Parts. No Compromises.

The Twisted Executioner™ represents the absolute limit of the 4L60E platform, featuring premium billet hard parts, Sonnax® Smart-Tech drum technology, 5-pinion geartrain upgrades, and maximum-capacity clutch systems engineered for extreme street and street/strip applications producing up to 750 horsepower.

This is not an upgraded rebuild—it's a fully reinforced, performance-engineered transmission built to survive where conventional 4L60E builds fail.

Designed for customers who demand the strongest 4L60E possible before stepping up to a 4L80E or TH400.

💣 WHAT MAKES EXECUTIONER™ DIFFERENT

The Executioner™ builds upon everything found in our Punisher™ Series and pushes the platform even further with premium billet components, maximum clutch capacity, upgraded hydraulic circuits, and race-proven hard parts throughout.

🔧 EXECUTIONER™ BUILD FEATURES

🔥 MAXIMUM CAPACITY CLUTCH SYSTEM

✔ Twisted Torque™ HD High-Energy Clutches & Kolene® Steels — Maximum Capacity Configuration

✔ Optimized 3-4 Clutch Pack Capacity

✔ Billet 3-4 Apply Piston

✔ Reinforced Apply Components Throughout

Designed to maximize holding power while improving clutch durability under extreme torque loads.

💣 PREMIUM BILLET HARD PARTS PACKAGE

✔ Billet Input Shaft

✔ Sonnax® Smart-Tech Input Drum Assembly

✔ Billet 3-4 Apply Piston

✔ Billet Super Hold Servo Assembly

✔ Billet Reaction Shaft Support (Where Applicable)

Designed to eliminate common spline twist, drum failure, and shaft breakage found in high-horsepower applications.

⚙️ HEAVY-DUTY GEARTRAIN

✔ Beast® Heavy-Duty Sun Shell

✔ Mechanical Diode Intermediate One-Way Clutch

✔ Reinforced Reaction Components

Designed to improve torque capacity, distribute load more efficiently, and withstand the shock loads associated with high-horsepower street and street/strip applications.

⭐ AVAILABLE UPGRADE — SONNAX® EXTREME GEARTRAIN PACKAGE

Upgrade your Executioner™ with the industry's strongest OEM-style planetary geartrain.

Includes:

✔ Sonnax® 6-Pinion Front Planetary Assembly

✔ Sonnax® 6-Pinion Rear Planetary Assembly

🧠 BAND & APPLY SYSTEM

✔ Wide Carbon High-Performance Intermediate Band

✔ Billet Super Hold Servo Assembly

✔ Increased Apply Force Calibration

Designed to reduce band slippage while improving apply consistency under elevated line pressure.

⚙️ TWISTED TORQUE™ HYDRAULIC SYSTEM

✔ Modified Valve Body — Twisted Torque™ Performance Calibration

✔ Reinforced Separator Plate

✔ Increased Line Pressure Strategy

✔ Optimized Shift Timing

✔ Performance Accumulator Calibration

✔ Improved Lubrication & Apply Circuits

Calibrated for aggressive street, street/strip, and high-performance driving while maintaining reliable hydraulic control.

🔥 PERFORMANCE PUMP & PRESSURE SYSTEM

✔ Blueprinted Pump Assembly

✔ Hardened Pump Rings

✔ Sonnax® Oversized Boost Valve

✔ Performance Pressure Regulator Updates

✔ Optimized Lubrication Circuits

Designed to maintain stable hydraulic pressure and clutch holding power under extreme load conditions.

🔌 INTERNAL ELECTRONICS — ALL NEW

✔ New EPC Solenoid

✔ New Shift Solenoids

✔ New Internal Wiring Harness

✔ Updated Pressure Switch Manifold

✔ Complete Electrical Inspection & Testing

🔄 PERFORMANCE TORQUE CONVERTER INCLUDED

✔ Billet Cover Lock-Up Torque Converter

✔ Billet Lock-Up Apply Piston

✔ 2100–2500 RPM Stall Speed

✔ Furnace-Brazed Turbine Fins

✔ Heavy-Duty Lockup Clutch System

Engineered for superior lock-up strength, durability, and torque transfer in high-horsepower applications.

⚠️ HIGH STALL CONVERTER NOTICE

Heat is the #1 killer of any performance transmission.

An auxiliary transmission cooler is strongly recommended for all high-performance and high-stall converter applications.

🧩 SUPPORTING COMPONENTS

✔ Complete Bushing Replacement

✔ Complete Seal & Ring Replacement

✔ Torrington Bearing Upgrades Where Applicable

✔ New Transmission Filter

✔ Precision Assembly & Air Check Verification

✔ Final Inspection Prior to Shipment

⚙️ IDEAL APPLICATIONS

✔ Supercharged LS Builds

✔ Turbocharged LS Builds

✔ Nitrous Applications

✔ Street / Strip Vehicles

✔ Lightweight High-Horsepower Builds

✔ Aggressive Performance Driving

🧠 BUILT TO ORDER

Every Twisted Executioner™ transmission is custom-built for your specific vehicle and application.

✔ Year, Make & Model Verification

✔ Engine Combination

✔ 2WD or 4WD Configuration

✔ Electronics Compatibility

✔ Speed Sensor Configuration

✔ Tailhousing & Output Shaft Configuration

No shelf units. No guesswork. Every transmission is built the Twisted Torque™ Way.

⚠️ PLATFORM LIMIT NOTICE

The Twisted Executioner™ represents the practical upper limit of what a properly engineered 4L60E platform can reliably support.

For heavier vehicles, dedicated drag racing, frequent competition use, or power levels exceeding this range, we strongly recommend upgrading to a Twisted 4L80E or TH400 platform. Their larger geartrain, clutch capacity, and overall design provide significantly greater torque capacity and long-term durability.
