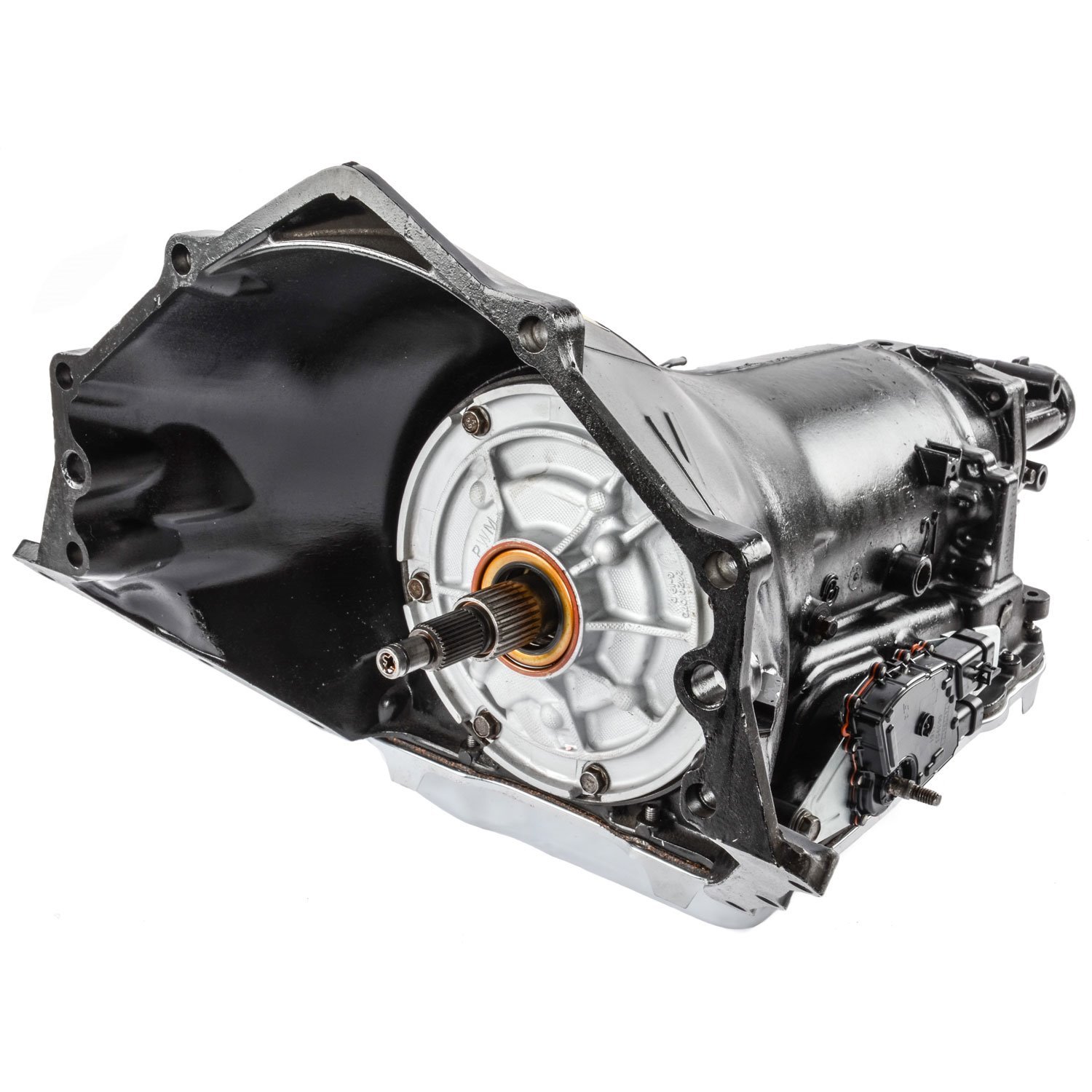

🔥 Twisted Punisher™ 4L60E Performance Transmission (550–650 HP)

1993–1997 GM 4L60E • Early 1-Piece Case Design • Built to Order

Serious Power. Proven Components. Built the Twisted Torque™ Way.

The Twisted Punisher™ is engineered specifically for 1993–1997 GM vehicles equipped with the early one-piece case 4L60E, delivering reliable performance for aggressive street, street/strip, towing, and high-performance applications producing 550–650 horsepower.

Built upon our Twisted PRO™ platform, the Punisher™ incorporates reinforced hard parts, increased clutch capacity, upgraded hydraulics, and heavy-duty internal components designed to withstand substantially higher torque loads while maintaining excellent street manners.

Designed for enthusiasts who have exceeded the limits of a typical performance rebuild and demand the strongest practical one-piece case 4L60E available for serious street and street/strip use.

⚠️ FITMENT NOTE

This transmission is designed exclusively for 1993–1997 GM applications equipped with the early one-piece case 4L60E.

If your vehicle uses the later removable bellhousing design (1998-up), please refer to our later-model Twisted Punisher™ transmission listings to ensure proper fitment.

💣 WHAT MAKES PUNISHER™ DIFFERENT

The Twisted Punisher™ bridges the gap between our Twisted PRO™ and flagship Executioner™ Series by combining reinforced hard parts, increased clutch capacity, aggressive hydraulic calibration, and race-proven durability upgrades engineered for high-horsepower street performance.

🔧 PUNISHER™ BUILD FEATURES

🔥 HIGH-CAPACITY CLUTCH SYSTEM

✔ Twisted Torque™ HD High-Energy Clutches & Kolene® Steels

✔ Optimized 3-4 Clutch Pack Capacity

✔ Reinforced Apply Components Throughout

Designed to maximize clutch holding power while improving durability under elevated horsepower and torque.

💪 REINFORCED HARD PARTS PACKAGE

✔ Heavy-Duty Hardened Input Shaft

✔ Beast® Heavy-Duty Sun Shell

✔ Reinforced Internal Hard Parts

Designed to reduce spline twist, eliminate common sun shell failures, and improve durability in demanding high-performance applications.

⚙️ HEAVY-DUTY GEARTRAIN

✔ Reinforced 5-Pinion Front Planetary Assembly

✔ Reinforced 5-Pinion Rear Planetary Assembly

✔ 29-Element Intermediate Sprag Assembly

✔ Reinforced Reaction Components

The reinforced 5-pinion geartrain distributes torque across additional contact points compared to factory assemblies, improving durability during hard launches, aggressive shifting, and sustained high-load operation.

🧠 BAND & APPLY SYSTEM

✔ Wide Carbon High-Performance Intermediate Band

✔ Super Hold Servo Assembly

✔ Increased Apply Force Calibration

Designed to reduce band slippage while improving apply consistency under elevated line pressure.

⚙️ TWISTED TORQUE™ HYDRAULIC SYSTEM

✔ Modified Valve Body — Twisted Torque™ Punisher Calibration

✔ Increased Line Pressure Strategy

✔ Optimized Shift Timing

✔ Performance Accumulator Calibration

✔ Sonnax® Oversized Boost Valve

✔ Performance Pressure Regulator Updates

✔ Improved Fluid Flow & Lubrication Circuits

Calibrated to deliver firm, positive shifts while maximizing clutch holding capacity under aggressive street and street/strip driving.

🔥 PERFORMANCE PUMP & PRESSURE SYSTEM

✔ Blueprinted Pump Assembly

✔ Hardened Pump Rings

✔ Pressure-Optimized Hydraulic Circuits

Designed to maintain consistent hydraulic pressure and clutch apply under demanding operating conditions.

🔌 INTERNAL ELECTRONICS — ALL NEW

✔ New EPC Solenoid

✔ New Shift Solenoids

✔ New Internal Wiring Harness

✔ Updated Pressure Switch Manifold

✔ Complete Electrical Inspection & Testing

🔄 PERFORMANCE TORQUE CONVERTER INCLUDED

✔ Heavy-Duty Lock-Up Torque Converter

✔ Furnace-Brazed Turbine Fins

✔ Heavy-Duty Lockup Clutch System

✔ Stall Speed Matched to Your Vehicle Combination

Designed to improve launch characteristics, throttle response, towing capability, and overall street performance while maintaining excellent drivability.

🧩 SUPPORTING COMPONENTS

✔ Complete Bushing Replacement

✔ Complete Seal & Ring Replacement

✔ Torrington Bearing Upgrades Where Applicable

✔ New Transmission Filter

✔ Precision Assembly & Air Check Verification

✔ Final Inspection Prior to Shipment

⚙️ IDEAL APPLICATIONS

✔ Naturally Aspirated LS Performance Builds

✔ Supercharged Applications

✔ Turbocharged Applications

✔ Nitrous Applications

✔ High-Performance Street Vehicles

✔ Street / Strip Builds

✔ Performance Trucks & SUVs

✔ Customers Exceeding PRO™ Power Levels

🧠 BUILT TO ORDER

Every Twisted Punisher™ transmission is custom-built for your specific vehicle and application.

✔ Year, Make & Model Verification

✔ Engine Combination

✔ 2WD or 4WD Configuration

✔ Electronics Compatibility

✔ Speed Sensor Configuration

✔ Tailhousing Configuration

No shelf units. No guesswork. Every transmission is built the Twisted Torque™ Way.

❄️ KEEP IT COOL

Heat is the #1 enemy of every automatic transmission.

For all high-performance, towing, off-road, and street/strip applications, Twisted Torque strongly recommends installing a high-capacity auxiliary transmission cooler.

Maintaining transmission fluid temperatures below 180°F significantly improves clutch life, extends fluid service life, and helps protect your investment. Excessive heat is one of the leading causes of premature clutch wear and transmission failure.
