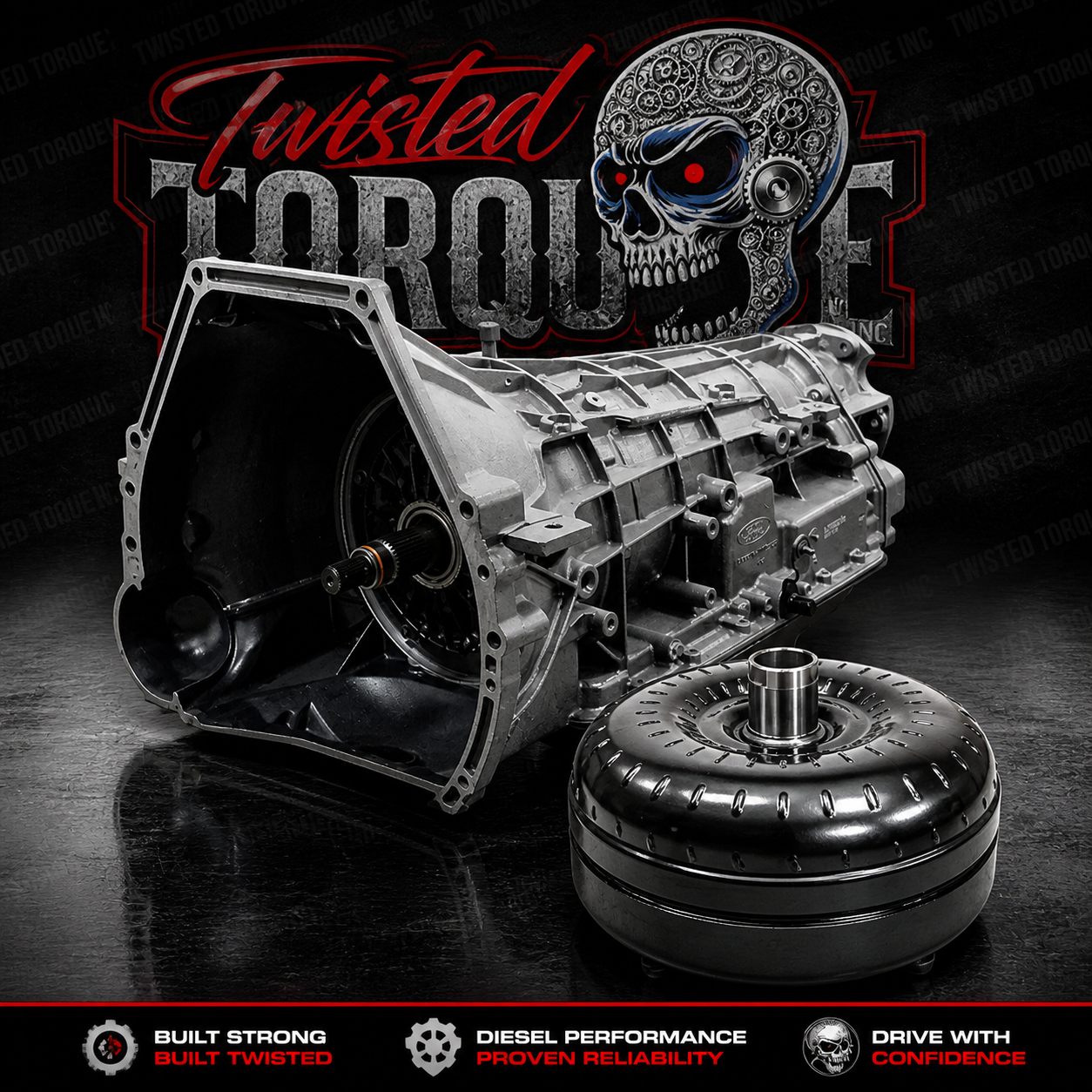

🔥 Twisted Pro™ 4R100 Diesel Performance Transmission – 7.3L Power Stroke (550 HP Rated)

DIESEL ONLY | Ford 7.3L Power Stroke

Heavy Towing • Tuned Diesel Trucks • Larger Tires • Street / Tow Performance

The Twisted Pro™ 4R100 Diesel Performance Transmission is built for Ford 7.3L Power Stroke owners demanding substantially more holding power, towing durability, converter strength, and hydraulic control than a stock or basic rebuilt transmission can provide.

Designed for tuned diesel trucks, larger tire setups, heavy towing, work applications, and performance-minded daily drivers, the Twisted Pro™ package addresses the major factory 4R100 failure points while improving clutch capacity, line pressure stability, converter holding power, and overall transmission durability under sustained diesel torque loads.

This is NOT a generic remanufactured transmission — every Twisted Pro™ unit is built, calibrated, and updated the Twisted Torque™ way.

🔥 IDEAL APPLICATIONS

Perfect for:

• Tuned 7.3L Power Stroke trucks

• Heavy towing & hauling

• Larger tire applications

• Daily-driven performance diesel trucks

• Work trucks under sustained load

• Mild injector & tuning upgrades

• Long-distance towing & heat-intensive use

Rated to handle up to 550 HP when properly matched to vehicle use and tuning.

🔧 TWISTED PRO™ DIESEL 4R100 OVERHAUL PACKAGE

✔️ Twisted Torque™ HD Diesel Clutches & Steels

• Increased clutch holding capacity

• Improved heat resistance under towing and tuned applications

• Designed for diesel torque and heavy load conditions

✔️ Heavy-Duty Performance Master Overhaul Kit

Includes upgraded:

• Seals & gaskets

• O-rings & sealing rings

• Improved durability components throughout transmission

✔️ Diesel-Spec HD Bushing Kit

• Reduces hydraulic leakage

• Stabilizes pressure under sustained load

• Improves long-term durability

✔️ HD Thrust Washer & Bearing Set

• Corrects endplay alignment

• Protects against diesel torque shock and towing stress

✔️ High-Volume OEM-Style Filter

• Supports increased heat and debris load under towing conditions

⚙️ TWISTED™ VALVE BODY — MODIFIED & UPDATED THE TWISTED™ WAY

🔥 Twisted™ Diesel Tow / Performance Valve Body Calibration

• Modified and updated the Twisted™ way

• Improved clutch apply timing

• Increased holding power under load

• Firmer, more positive shifts

• Improved converter clutch control

• Calibrated specifically for diesel torque curves and towing applications

✔️ Heavy-Duty EPC Solenoid (Diesel Spec)

✔️ New Shift Solenoids

✔️ Updated Pressure Manifold Assembly (Twisted™ Verified)

✔️ Sonnax Hydraulic System Updates

This is NOT a generic reman valve body — it is modified, updated, and calibrated in-house to Twisted Torque diesel performance standards.

🔩 TWISTED PRO™ DIESEL HARD-PART DURABILITY PACKAGE

✔️ Increased direct clutch capacity

✔️ Updated heavy-duty center support

✔️ Heavy-duty intermediate sprag / mechanical diode upgrade

✔️ Reinforced reverse drum

✔️ Strengthened reaction shell

✔️ Billet intermediate servo upgrade

✔️ Upgraded coast clutch system

✔️ Reinforced pump stator support

✔️ Updated internal durability components throughout

These upgrades address the most common 4R100 diesel towing and performance failure points.

🚗💨 TWISTED™-MODIFIED PUMP ASSEMBLY

🔥 Pump Assembly Modified & Updated the Twisted™ Way

✔️ Remanufactured pump assembly

✔️ Hardened pump rings

✔️ Updated pump gears

✔️ Corrected pressure-regulator circuit

✔️ Twisted™-specific pressure calibration

✔️ Improved pressure stability under towing and tuned applications

Provides stable line pressure critical for clutch life, converter holding power, and towing durability.

🚙💨 SINGLE DISC BILLET DIESEL TORQUE CONVERTER INCLUDED

✔️ Billet Cover Diesel Torque Converter Included

• Designed specifically for high-torque diesel applications

• Improved converter clutch holding power

• Increased towing durability

• Reduced converter clutch failure under tuned applications

• Improved lockup performance under load

• Designed for towing, hauling, and performance diesel use

🛠 DIESEL COOLING & TUNING RECOMMENDATIONS

🔥 Transmission Cooling Strongly Recommended

Twisted Torque™ strongly recommends upgrading to the larger 6.0 Power Stroke transmission cooler or equivalent stacked-plate external cooler on all towing and tuned diesel applications.

Excessive heat is one of the leading causes of transmission failure in modified diesel trucks.

Recommended upgrades include:

• 6.0 Power Stroke transmission cooler conversion

• External stacked-plate cooler

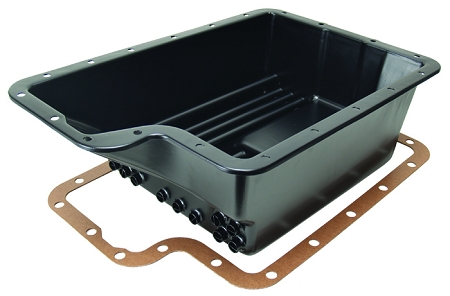

• Deep aluminum transmission pan

• Transmission temperature gauge

• Regular transmission fluid service intervals

🔥 Professional Transmission Tuning Recommended

Improper tuning and excessive transmission temperatures are among the leading causes of 4R100 transmission failure.

Twisted Torque™ strongly recommends professionally calibrated transmission tuning for modified diesel trucks.

Popular diesel tuning platforms include:

• PHP Hydra

• Gearhead Automotive Performance

• Jelibuilt Performance

🚚 FITMENT — DIESEL ONLY

Designed for Ford trucks equipped with the 7.3L Power Stroke diesel, including:

• F-250 Super Duty

• F-350 Super Duty

• Excursion

• Heavy-duty towing & work truck applications
