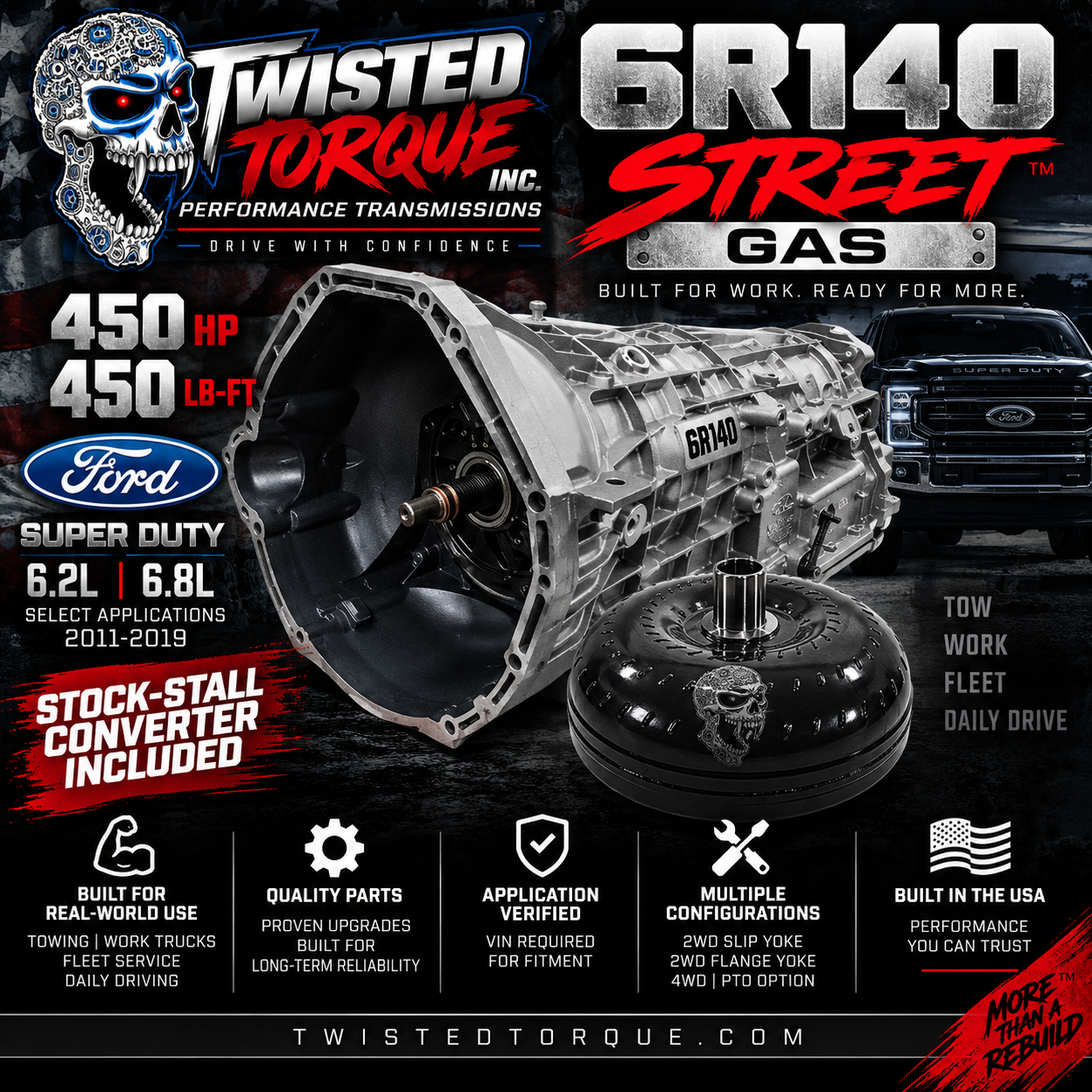

TWISTED STREET™ 6R140 GAS PERFORMANCE TRANSMISSION

Ford 6.2L V8 & Select 6.8L V10 Gas Applications

Rated Up To 450 HP / 450 LB-FT

Stock-Stall Torque Converter Included

The Twisted Street™ 6R140 is our heavy-duty replacement build for stock and mildly modified Ford gas applications originally equipped with the 6R140.

Built for daily driving, towing, work trucks, fleet service and mild performance use.

━━━━━━━━━━━━━━━━━━━━━━

TWISTED STREET™ BUILD SPECS

CLUTCHES

✔ Twisted Torque™ Clutch & Steel Package

✔ Year/application-correct clutch configuration

✔ Clutch drums and apply components inspected

✔ Clutch clearances set and verified

VALVE BODY & HYDRAULICS

✔ Year/application-correct updated valve body and separator plate (Early gas units are updated to the later three-dampener configuration where applicable. Valve body, separator plate and hydraulic configuration are matched to the customer application.)

✔ Valve body completely disassembled and cleaned

✔ Valve bores inspected for wear

✔ Critical hydraulic circuits checked for leakage

✔ Main pressure-regulator circuit inspected

✔ Solenoid-feed pressure circuit inspected

✔ TCC / converter-charge circuits inspected

✔ Clutch-control circuits inspected

✔ Sonnax hydraulic corrections installed as required

✔ Worn valve bodies repaired or replaced

COOLING & LUBRICATION

✔ Thermal cooler-bypass system inspected and corrected as required

✔ Cooler circuit inspected

✔ Converter-charge circuit inspected

✔ Lubrication circuit inspected

PUMP

✔ Pump completely disassembled

✔ Pump body and components inspected

✔ Converter hub support bearing/seal inspected

✔ Pump bushings and bearing surfaces inspected

✔ Pressure-regulation circuit inspected

✔ Converter-charge and lubrication circuits inspected

✔ Pump clearances checked

✔ Pump repaired or replaced as required

HARD PARTS

✔ Forward / Overdrive drum and input assembly inspected

✔ Input shaft and splines inspected

✔ Clutch drums and hubs inspected

✔ Planetary assemblies inspected

✔ One-way clutch components inspected

✔ Output shaft/components inspected

✔ Bearing and bushing surfaces inspected

Cracked, worn or questionable hard parts are replaced.

BUSHINGS & SEALS

✔ New bushing package

✔ New sealing rings

✔ New seals and gaskets

✔ New O-rings

✔ Bonded/molded pistons replaced as required

INTERNAL ELECTRONICS

✔ Solenoids inspected and tested

✔ Correct solenoid calibration, band and location verified during assembly

✔ Internal harness and sensors inspected and tested

✔ Internal mode/range components inspected and tested

✔ Failed or out-of-spec electronic components replaced

✔ Finished Solenoid Body Strategy and ID recorded and supplied with every transmission

━━━━━━━━━━━━━━━━━━━━━━

STOCK-STALL TORQUE CONVERTER INCLUDED

Every Street™ 6R140 includes a professionally remanufactured gas 6R140 stock-stall torque converter matched to the application.

✔ Stock stall speed

✔ Factory-style lockup

✔ Built for daily driving, towing and work-truck use

✔ Converter clutch and internal components inspected/rebuilt

✔ Converter balanced after assembly

Heavy-duty performance converter upgrade available.

━━━━━━━━━━━━━━━━━━━━━━

RATED FOR

Up To 450 HP / 450 LB-FT

Recommended for:

✔ Stock 6.2L gas trucks

✔ Mild bolt-on modifications

✔ Daily driving

✔ Towing and hauling

✔ Work / service trucks

✔ Fleet and commercial use

Forced induction, higher-output combinations or severe performance use should move to the Twisted Pro™ or Twisted Punisher™ 6R140.

━━━━━━━━━━━━━━━━━━━━━━

FITMENT

6.2L Gas V8

Select Ford Super Duty applications originally equipped with the 6R140.

6.8L Gas V10

Select Super Duty, commercial and medium-duty applications originally equipped with the 6R140.

Available configurations include select:

2WD Slip Yoke • 2WD Flange Yoke • 4WD • PTO • Non-PTO

VIN REQUIRED

Ford made multiple changes to the 6R140 throughout production.

Customer VIN and application are used to verify the required valve body, separator plate, clutch configuration, output configuration, converter and calibration.

We build to the application, not the donor core.

━━━━━━━━━━━━━━━━━━━━━━

INSTALLATION & PROGRAMMING

No aftermarket performance tune is required for a stock vehicle.

Each transmission is supplied with the Solenoid Body Strategy and ID from the completed transmission. These values must be programmed into the vehicle during installation.

Installer requirements:

✔ Program the supplied Solenoid Body Strategy and ID into the vehicle

✔ Reset transmission adaptive values / Keep Alive Memory as required

✔ Complete the Ford adaptive relearn procedure

✔ Verify fluid level at the proper operating temperature

✔ Flush and flow-test cooler and cooler lines before operation

Modified vehicles require proper engine/transmission calibration for power level, tire size, axle ratio and intended use.

━━━━━━━━━━━━━━━━━━━━━━

TWISTED STREET™ 6R140

450 HP / 450 LB-FT

Twisted Torque™ Clutch & Steel Package

Updated Year/Application-Correct Valve Body Build

Sonnax Hydraulic Corrections As Required

Thermal Cooler-Bypass System Checked

Pump & Converter-Charge Circuits Checked

New Bushings & Seals

Tested Internal Electronics

Solenoid Strategy & ID Supplied

Stock-Stall Converter Included

BUILT STRONG. BUILT TWISTED.
