WIDE FRAME 1964-1967 & 1968-1972 A-BODY HARDTOP CROSSMEMBER
Fits Transmissions: 1964-1967 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC TKO-500, and TKO-600. 1968-1972 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC, TKO-500, TKO-600, 2004R, and TH400 Short Tail.
0 reviews
$506.99
Part Number: TDRCAE-WF
Total Price:$506.99
Product Options
Quantity
1
SKU: TDRCAE-WF
Brand: 4
Product Description
PRODUCT DESCRIPTION

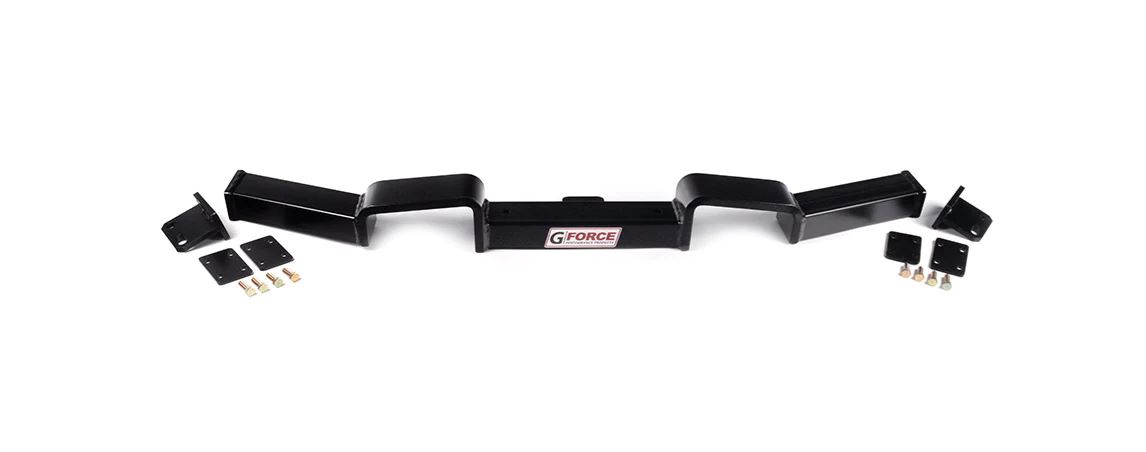

New Adjustable Width Crossmember
This crossmember is designed for A-Body cars frames measuring wider than the standard 53-5/8" mounting hole center to hole center.
It has removable end-tabs and comes with four 3/16" thick shims to bring the mounting width to a max of 54-3/8". If your frame measures wider than this dimension, give us a call to discuss further options.
Fits Models: Chevelle, El Camino, Malibu, Monte Carlo, GS, Skylark, 442, Cutlass, F85, Grand Prix, GTO, LeMans, Tempest, Special, Sport Wagon, Vista Cruiser
Fits Years: 64-67 and 68-72
1964-1972 Hardtops Only. Will not fit convertibles or El Caminos with boxed frame.
Fits Transmissions: 1964-1967 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC TKO-500, and TKO-600. 1968-1972 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC, TKO-500, TKO-600, 2004R, and TH400 Short Tail.
We recommend a polyurethane transmission mount. The GMTM is sold separately.
The standard distance between the crossmember frame mounting holes on most A-Body cars is 53-5/8".
This crossmember is intended for the rare instances of a wider frame seen on some early A-Body Cars.
