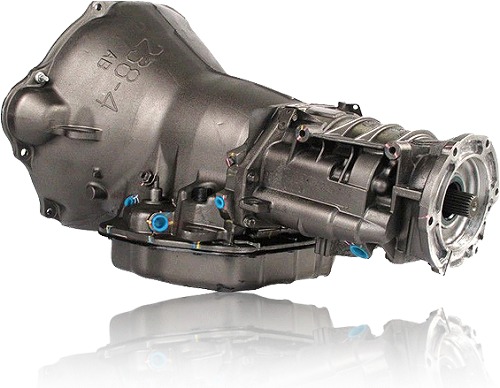

🔥 Twisted Punisher™ 46RE / A518 Transmission

Up to 650 HP – Heavy-Duty Gas Applications

Built & Calibrated the Twisted Torque™ Way

The Twisted Punisher™ 46RE is engineered for high-torque gas applications requiring reinforced internal strength, upgraded hydraulic control, and increased holding capacity.

Designed for heavily modified Dodge Ram trucks, high-power classic builds, and serious-duty direct replacements.

This is reinforced internal strength with performance-calibrated hydraulics.

🛠️ Vehicle Fitment

✔ 1996–2003 Dodge Ram 1500 / 2500 (Gas)

✔ 5.2L & 5.9L Magnum V8

✔ A518 / 46RE Applications

✔ HD builds, classic swaps, and direct replacements

✔ 2WD or 4WD configurations available

(Verify output configuration at checkout.)

💪 Power Rating & Intended Use

Rated Up To 650 HP

(properly tuned naturally aspirated applications)

Designed for:

✔ Aggressive cammed builds

✔ High-torque street trucks

✔ Heavy towing under load

✔ Performance-oriented classic builds

✔ HD daily drivers

✔ Strong direct OEM replacements

⚠ Not intended for nitrous, extreme boost, or race-only applications.

⚙️ Twisted Punisher™ Build Specifications

🔧 Internal Hard Parts & Friction System

✔ Raybestos GPZ high-performance clutch system

✔ Increased clutch pack capacity

✔ Kolene performance steels

✔ Reinforced overdrive clutch system

✔ Wide performance band

✔ Billet band strut

✔ Billet band lever

✔ Billet accumulator piston

✔ All new bushings

✔ Updated sealing rings

✔ Heavy-duty thrust components

✔ New filter

Clearances set to high-load performance specification.

🧠 Hydraulic System

Modified & Updated the Twisted Torque™ Way

✔ Pump assembly – Increased line pressure calibration

✔ Valve body – Performance calibrated

✔ TransGo HD2 / Pro reprogramming system

✔ Sonnax hydraulic circuit upgrades

✔ Sonnax Super Hold servo

✔ Updated separator plate configuration

✔ New pressure sensor

✔ New governor pressure solenoid

✔ All factory wear corrections addressed

Delivers:

✔ Maximum line pressure stability

✔ Firm, decisive 1–2 and 2–3 shifts

✔ Reduced band slip under load

✔ Improved converter clutch holding

🔄 46RE Twisted™ Single Disc Billet Torque Converter Included

✔ Billet front cover

✔ Single-disc billet lock-up clutch

✔ Furnace-brazed fins

✔ Reinforced turbine hub

✔ Anti-balloon reinforcement

✔ Stall speed matched to torque output

✔ Balanced and pressure tested

Designed to handle increased torque while maintaining strong lock-up holding under load and towing.

🛢️ Derale Extra Capacity Deep Pan Included

✔ Derale deep aluminum transmission pan

✔ Increased fluid capacity for improved cooling

✔ Cooling fins for better heat dissipation

✔ Magnetic drain plug

✔ Ideal for towing and heavy-load applications

Improves temperature control during high-stress use.

🏗️ Twisted Torque™ Punisher Build Standard

✔ Fully disassembled

✔ Hard parts inspected and verified

✔ Endplay and clutch clearance set to performance spec

✔ Hydraulic circuits vacuum-tested

✔ Professionally assembled and inspected prior to shipment

Pump and valve body assemblies are Modified & Updated the Twisted Torque™ Way for maximum pressure control and consistent high-load shift performance.
