FO301 FORD Y-BLOCK 239/252/272/292/312 TO FORD SMALL BLOCK AOD/C5/C6
0 reviews
$1350.00
Part Number: FO301
Total Price:$1350.00
Quantity
1
Categories
SKU: FO301
0Product Description
FO301 FORD Y-BLOCK 239/252/272/292/312 TO FORD SMALL BLOCK AOD/C5/C6
Note:
This kit will also work for a C5, C6.
If you plan on using a C4, be sure that you have the larger 164 tooth flexplate style bellhousing (Ford also made a 157 tooth version). An easy way to check that is by measuring across the inside of the bellhousing to see if the 14.25? O.D. of the 164 tooth flexplate will clear; the 157 tooth flexplate is about a full inch smaller.

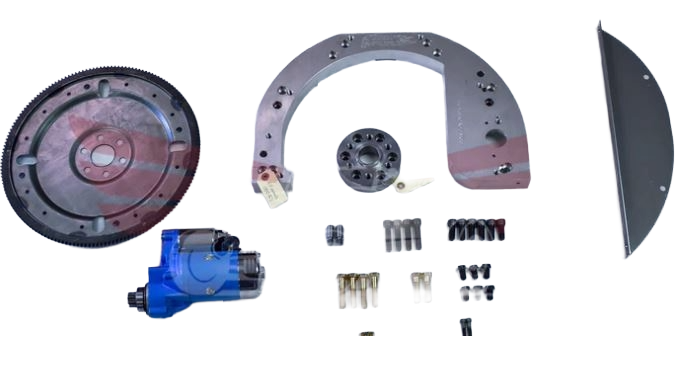

Materials Included:
(1) Adapter Plate - Ford/Lincoln/Mercury to Ford
(1) Crank Adapter - Ford 223 Inline-6 or 239 "Y"-block to Ford AOD Transmission
(1) Flexplate
(1) High-torque mini-Starter
(1) Inspection Cover - Ford (most)
(4) SHCS 7/16-14 x 1-3/4
(6) SHCS 7/16-20 x 1
(6) 7/16-20 x 3/4 flexplate bolts
(2) HCS 1/4-20 x 1/2
(2) FLAT WASHER 1/4
(2) LOCK WASHER 1/4
(2) SHCS 1/4-28 x 1-3/4 (Starter Bolts)
(4) HCS 7/16-14 x 2
(2) HCS 7/16-14 x 1 3/4
(2) Stepped Dowel Pin Threaded 7/16-14
