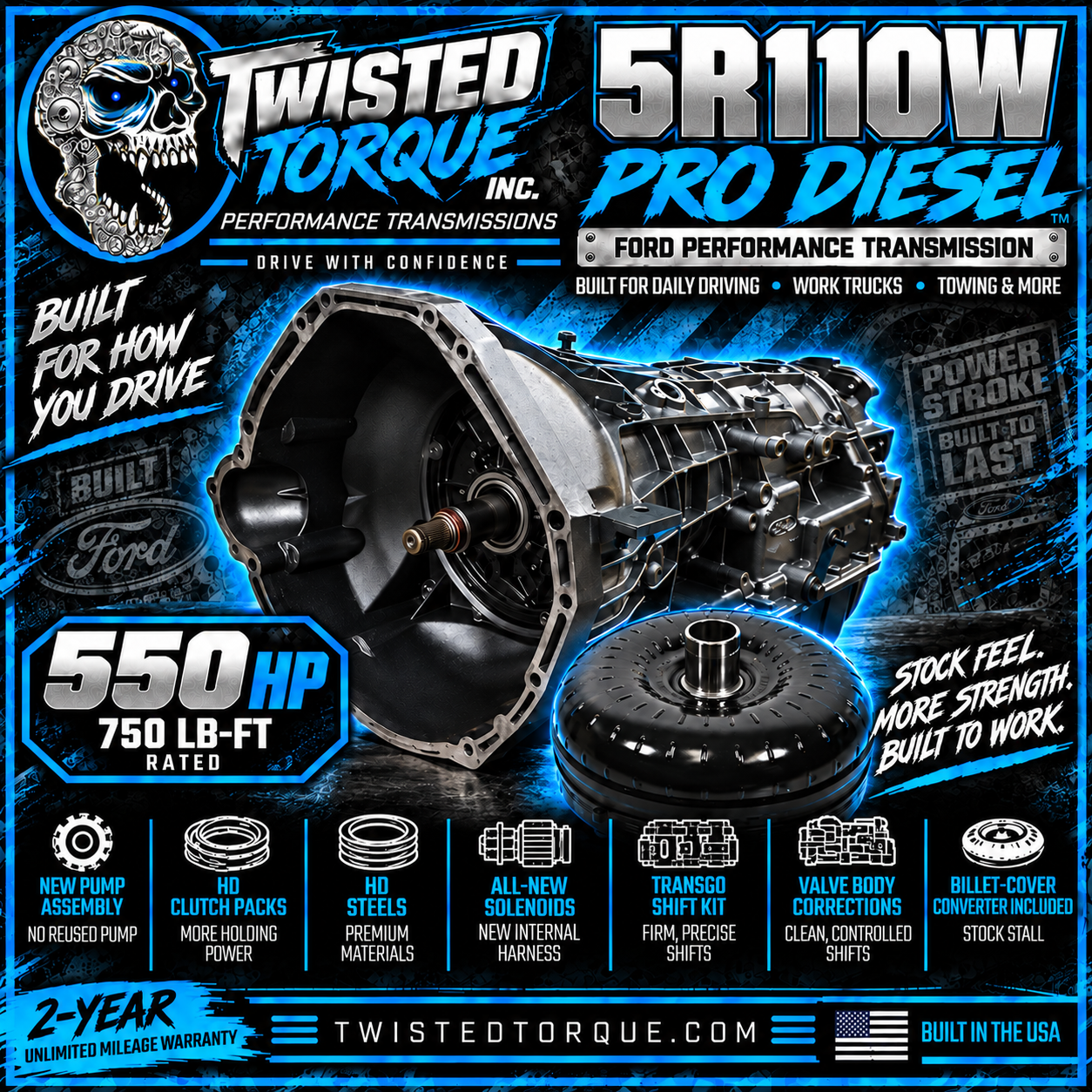

Ford 5R110W Pro Diesel Performance Transmission | 6.0L & 6.4L Power Stroke | 2003–2010

TWISTED TORQUE PRO SERIES | 550 HP / 750 LB-FT TORQUE

HD CLUTCH PACKS | HD STEELS | TRANSGO SHIFT KIT | BILLET-COVER CONVERTER

The Twisted Torque 5R110W Pro Diesel is built for 6.0L and 6.4L Power Stroke trucks running stock or mild performance upgrades. Whether you're towing, hauling or running a mild tune, Pro steps up the clutch holding capacity and converter strength without the expense of a full billet transmission.

Rated up to 550 horsepower and 750 lb-ft of engine torque, Pro builds on our Street Series with increased-capacity Raybestos GPZ clutch packs, HD steels, upgraded Direct clutch apply parts and a billet-cover performance converter at factory stall.

Every transmission starts with a complete teardown. We inspect the case, pump, drums, shafts and planetary assemblies, then rebuild it with new clutches, steels, bushings, seals and all-new internal electronics.

PRO DIESEL BUILD SPECIFICATIONS

HD CLUTCHES & STEELS

• Raybestos GPZ performance friction clutches
• Increased-capacity Direct, Intermediate & Overdrive clutch packs
• Increased-capacity Forward clutch pack — application dependent
• New HD steels throughout
• New Coast & Low/Reverse clutches and steels
• Upgraded Direct apply piston & backing plate as required
• New bonded pistons, seals & drum sealing rings
• Clutch drums inspected and machined as needed
• Clutch pack clearances measured and set to specification

PRO UPGRADE: Increased clutch capacity provides additional friction surface and holding power over our Street build, particularly in the Direct, Intermediate and Overdrive clutch packs.

PUMP & PRESSURE REGULATOR

• Complete pump teardown, inspection & reconditioning
• Updated hardened steel pressure-regulator valve
• Pressure-regulator bore inspected and repaired as needed
• Updated converter clutch regulator circuit
• TransGo pump vent correction
• New pump bushings
• Pump gears, alignment & clearances checked

FACTORY UPDATE: The updated pressure-regulator valve and pump repairs address known 5R110W pressure loss and pressure spikes that can lead to slipping, converter problems and burned clutches.

PERFORMANCE VALVE BODY & SHIFT KIT

• Complete valve-body teardown and rebuilding
• TransGo 5R110W shift kit
• Shift-control setup matched to the Pro clutch packs and converter
• Updated metal pressure-switch plugs with O-ring seals
• Updated converter clutch control and pressure-regulator parts
• Shift valves, manual valve & separator plate inspected
• Valve bores checked for wear and leakage

PRO UPGRADE: The TransGo shift kit and valve-body setup help maintain consistent clutch apply pressure under load. Updated pressure-switch plugs help prevent internal leaks that can burn clutch packs.

ELECTRONICS & SOLENOIDS — ALL NEW

• New shift-pressure control solenoids
• New electronic pressure-control solenoid
• New torque converter clutch solenoid
• New internal transmission wiring harness
• New transmission fluid temperature sensor
• Input, turbine & output speed sensors inspected and replaced as needed
• Electrical connections and solenoid operation checked

Every Pro receives all-new internal solenoids and wiring, just like our Street build.

DRUMS, BUSHINGS & INTERNAL UPDATES

• New transmission bushings throughout
• New seals, gaskets & O-rings
• Updated Forward drum sealing rings
• Updated one-piece Direct drum bushing
• Updated heavy-duty Low/Reverse retaining ring
• Factory input & intermediate shafts inspected
• Planetary gears, bearings & one-way clutches inspected
• Thrust bearings and washers inspected and replaced as needed
• Transmission endplay checked and set
• New transmission filter

FACTORY UPDATES: Updated Forward sealing rings help reduce pressure leakage, the one-piece Direct drum bushing improves drum support, and the heavy-duty Low/Reverse retaining ring helps prevent case damage from a dislodged factory ring.

BILLET-COVER PERFORMANCE TORQUE CONVERTER — INCLUDED

• Upgraded billet-cover diesel performance torque converter
• Stock stall speed
• Upgraded converter clutch holding capacity
• Matched to the original 6.0L or 6.4L Power Stroke application

PRO UPGRADE: Street includes an OEM-style converter. Pro steps up to a billet-cover converter for increased cover strength and improved lockup holding capacity while maintaining factory-style driving characteristics.

HORSEPOWER & TORQUE RATING

550 HP | 750 LB-FT TORQUE

Designed for stock and mildly modified 6.0L and 6.4L Power Stroke trucks.

Factory engine ratings for reference:

• 6.0L Power Stroke — up to 325 HP / 570 LB-FT
• 6.4L Power Stroke — up to 350 HP / 650 LB-FT

Both horsepower and engine torque must remain within the advertised limits. Trucks with aggressive tuning, larger injectors, upgraded turbos or higher torque output should consider our Punisher Diesel or a custom build.

FORD 5R110W DIESEL APPLICATIONS

6.0L POWER STROKE | 2003–2007

• Ford F-250 Super Duty
• Ford F-350 Super Duty
• Ford F-450 Super Duty
• Ford F-550 Super Duty
• Ford Excursion — 2003–2005

6.4L POWER STROKE | 2008–2010

• Ford F-250 Super Duty
• Ford F-350 Super Duty
• Ford F-450 Super Duty
• Ford F-550 Super Duty

Select Ford E-Series 6.0L diesel applications available with fitment verification.

2WD & 4WD CONFIGURATIONS AVAILABLE

Transmission fitment is verified by production year, engine, VIN, drivetrain and PTO requirements.

BUILT FOR

• Daily-driven Power Stroke trucks
• Stock and mildly tuned diesel engines
• Street performance
• Towing and hauling within approved vehicle limits
• Work trucks and heavy-duty pickups
• Farm, ranch and fleet applications

WARRANTY

2-YEAR UNLIMITED MILEAGE MANUFACTURER DEFECT WARRANTY

Subject to Twisted Torque's written warranty terms, professional installation, required cooler service, maintenance and timely core return.

TWISTED TORQUE INC.

BUILT TO WORK. BUILT TO TOW. BUILT TO TAKE THE TORQUE.

Questions about your truck's setup or transmission fitment?

sales@twistedtorque.com

www.twistedtorque.com

TRANSMISSION TUNING & CALIBRATION

The Ford 5R110W is electronically controlled, and proper tuning plays an important role in shift timing, clutch apply pressure and torque converter lockup. Our transmissions are built to work with factory-compatible programming, but trucks running aftermarket engine tunes or modified power levels may require transmission tuning adjustments.

Excessive line pressure, aggressive shift settings or improper converter lockup can damage even an upgraded transmission. Please advise our team of any existing tuning or engine modifications before ordering. Custom tuning is not included.
