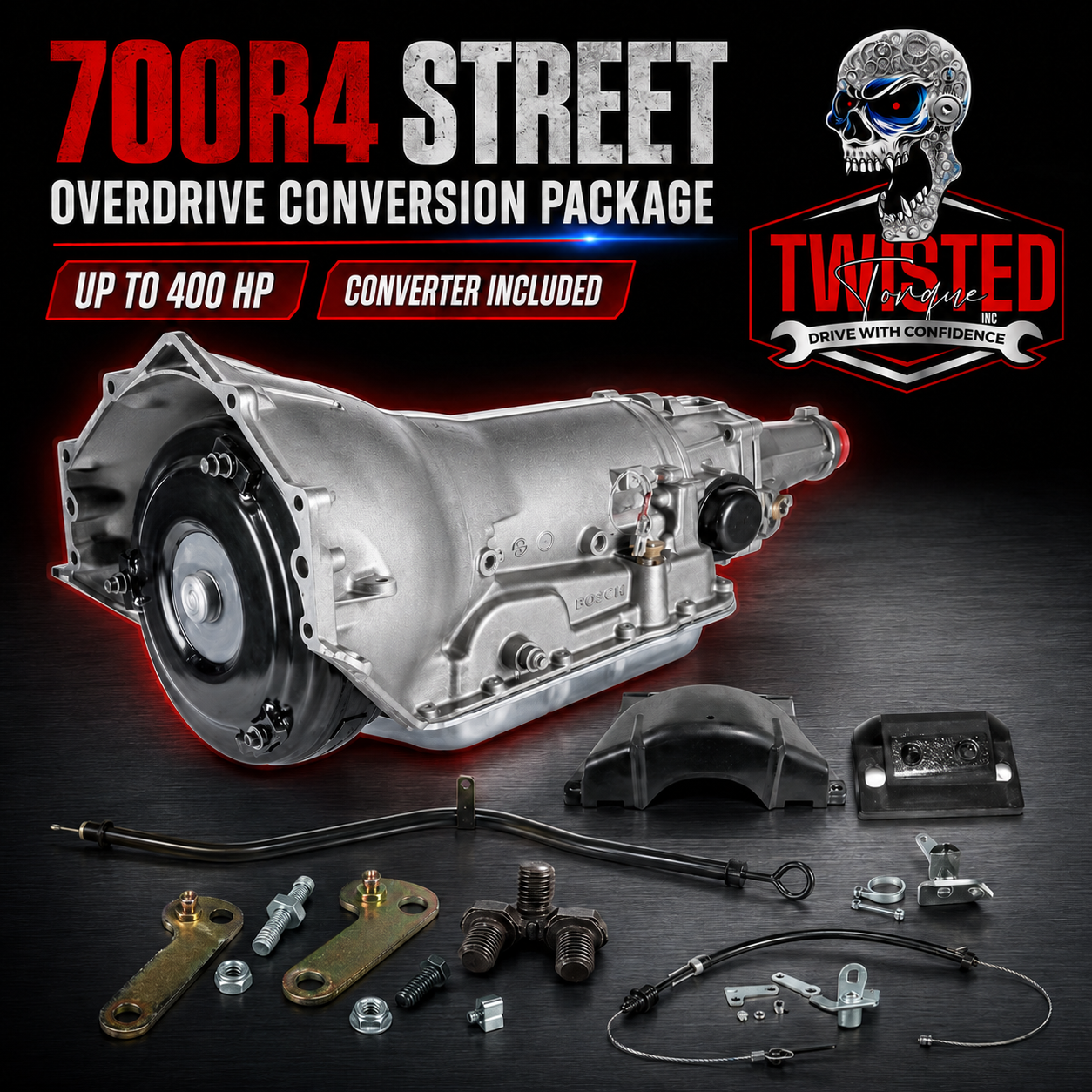

🔧 TWISTED STREET™ 700R4 OVERDRIVE CONVERSION PACKAGE

GM 700R4 Hydraulic 4-Speed Overdrive

UP TO 400 HP

POWERGLIDE • TH350 • TH400 • CLASSIC GM OVERDRIVE CONVERSIONS

The Twisted Street™ 700R4 Overdrive Conversion Package is built for customers replacing an older 2-speed or 3-speed automatic and wanting overdrive without piecing the swap together one part at a time.

You get our Twisted Street™ 700R4, 1650 stall lockup converter and the conversion parts commonly needed to get the swap installed and set up correctly.

Built for stock and mildly modified street cars and light trucks making up to 400 HP.

🔧 TWISTED STREET™ 700R4 BUILD

✔ High-Energy Performance Frictions

✔ New Performance Steels

✔ Increased 3-4 Clutch Capacity

✔ Heavy-Duty Wide 2-4 Band

✔ Corvette 2nd Servo

✔ New Forward Sprag

✔ Hardened Heavy-Duty Sun Shell

✔ Hardened Stator Support

✔ Complete New Bushing Kit

✔ 10-Vane Pump

✔ Hardened Pump Rings

✔ New Pump Bushing

✔ Boost Valve Calibrated for the Build

✔ Performance Shift Calibration

✔ TV & Pressure-Rise Circuits Corrected

✔ 3-4 Clutch Feed Addressed

✔ Accumulator & Shift Circuits Recalibrated

✔ Governor Inspected & Calibrated for the Application

✔ TransGo, Superior and other proven hydraulic corrections used as required

✔ Internal Clearances & End-Play Checked and Set During Assembly

The 700R4 has a few areas we don't leave stock. The 3-4 clutch, 2-4 band, sprag, sun shell, pump and hydraulic system are all addressed during the build.

The goal is good line pressure, positive clutch and band apply and clean shifts without unnecessary slip.

⚙️ TWISTED™ MODIFIED PUMP & VALVE BODY

✔ Twisted™ 10-Vane Modified Pump

✔ Twisted™ Reworked & Calibrated Valve Body

✔ Pump Clearances Checked & Set

✔ Pressure Regulator System Corrected

✔ TV & Pressure-Rise Circuits Corrected

✔ Shift & Accumulator Calibration

✔ Converter Lockup Circuit Checked

Both are completely gone through and set up for the application before the transmission leaves our shop.

🔥 INCLUDED TORQUE CONVERTER

✔ 1650 Stall Lockup Torque Converter

✔ Stock to Mild Performance Applications

✔ Smooth Street & Highway Operation

✔ 4th-Gear Lockup Capability

Running a bigger cam or modified combination? Give us the cam specs, rear gear and tire size so we can match the converter correctly.

🔄 OVERDRIVE CONVERSION ACCESSORY PACKAGE INCLUDED

✔ TV Cable

✔ Throttle / TV Cable Bracket

✔ Carburetor TV Geometry Correction Linkage, Application Dependent

✔ Speedometer Adapter / Setup

✔ Transmission Mount

✔ Dust Cover

✔ Dipstick & Tube

✔ Torque Converter Bolts

✔ 4th-Gear Lockup Wiring / Connection

✔ Hayden Auxiliary Transmission Cooler

✔ Two Cans of Transmission Cooler Line Flush

The TV cable bracket and geometry correction are matched to the carburetor or throttle-body setup whenever applicable.

Additional fittings, driveshaft modifications or vehicle-specific hardware may be required depending on what you're converting from and the vehicle.

⚠️ TV CABLE SETUP IS CRITICAL

The TV cable on a 700R4 is NOT just a kickdown cable.

It controls transmission pressure in relation to throttle position.

Incorrect TV cable geometry or adjustment can cause low line pressure, burned 3-4 clutches, band failure and rapid transmission damage.

Correct TV cable geometry and adjustment are mandatory.

Improper TV cable setup is an installation issue and is not covered as a transmission manufacturing defect.

🚗 GOOD FOR

✔ Powerglide to 700R4 Conversions

✔ TH350 to 700R4 Conversions

✔ TH400 to 700R4 Conversions

✔ Classic GM Cars & Trucks

✔ Chevy 305 / 350 / 383 Builds

✔ Mild Big-Block Chevy Builds

✔ Street Rods & Hot Rods

✔ Carbureted LS Swaps

✔ Daily Drivers & Cruisers

✔ Highway Driving

✔ Mild Street Performance

✔ Light Towing

📋 WHAT WE NEED FROM YOU

When ordering, we'll need:

✔ Year, Make & Model

✔ Engine

✔ Carburetor / Throttle-Body Make & Model

✔ Cam Specs, if Modified

✔ Current Transmission

✔ Rear Gear Ratio

✔ Rear Tire Size

✔ Vehicle Use

That information lets us set up the transmission, converter, TV system and speedometer setup for the vehicle.

Every Twisted Street™ 700R4 is built in-house, pressure checked and tested before shipping.

📞 QUESTIONS ABOUT YOUR SWAP?

833-858-9612

Tell us what you're working on, what's in it now and what you're converting from.

We'll make sure you're getting the right transmission, converter and conversion setup.
