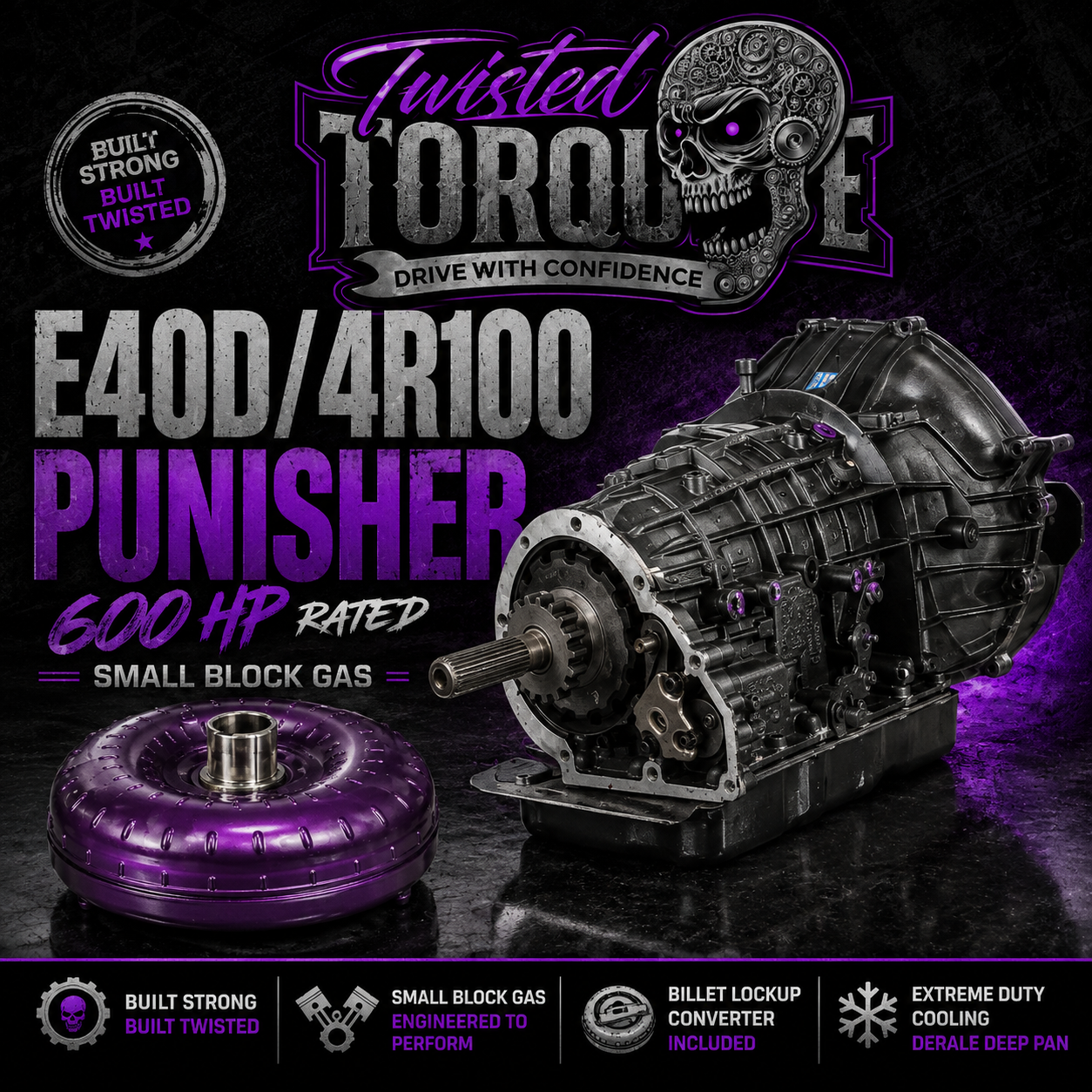

☠️ Twisted Punisher™ E4OD / 4R100 Performance Transmission

600 HP Rated | Small Block Gas Applications

Ford E4OD / 4R100 • Small Block Gas

High Performance • Extreme Duty • Towing • Hauling • Modified Trucks

The Twisted Punisher™ E4OD / 4R100 is built for high-performance and modified small-block Ford trucks that need substantially more strength and holding capacity than a stock transmission.

The Punisher steps beyond our Street and Pro builds with upgraded steel planetary assemblies, increased clutch capacity, hardened drivetrain components, upgraded pump and lubrication circuits, heavy-duty hydraulic calibration, a Derale high-capacity transmission pan, and a billet performance torque converter.

Built for high-performance street trucks, demanding towing and hauling, off-road use, and higher-horsepower small-block Ford combinations.

🔧 TWISTED PUNISHER™ BUILD PACKAGE

✔️ Premium Performance Master Overhaul Kit

Includes new:

High-energy performance friction plates
Steel plates
Gaskets & seals
O-rings
Sealing rings & components

✔️ High-Capacity Clutch Packs

5-Plate Forward Clutch
6-Plate Direct Clutch
Upgraded Intermediate Clutch Capacity
3-Plate Overdrive Clutch
High-energy friction materials
Machined pressure plates for increased clutch capacity

Increased clutch capacity provides greater holding power and improved heat resistance under higher horsepower, towing, and severe-duty operation.

🔩 PUNISHER™ HARD PART UPGRADES

✔️ Steel 6-Pinion Forward Planetary

Increased strength and improved load distribution under high-torque operation.

✔️ Steel Overdrive Planetary

Increased durability in the E4OD / 4R100 overdrive section under higher power and sustained load.

✔️ Hardened Heavy-Duty Input Shaft

Increased strength for higher horsepower, torque, and shock loading.

✔️ Hardened Drive Shell

Upgraded for increased durability under performance and severe-duty operation.

✔️ Heavy-Duty 45-Element Intermediate Sprag

Increased holding capacity over standard intermediate sprag configurations.

✔️ New Overdrive Sprag Assembly

New one-way clutch components for reliable overdrive operation.

✔️ Updated Roller-Bearing Center Support

Later-style center support and bearing upgrades reduce friction and improve durability under load.

✔️ Updated OD Spiral Retaining Ring

Improved overdrive retention under high-load operation.

✔️ Complete Bushing Package

New bushings installed throughout the transmission.

✔️ Complete Bearing & Thrust Package

New and updated thrust washers and Torrington bearings throughout critical rotating assemblies.

⚙️ PUNISHER™ HIGH-CAPACITY PUMP

The Punisher receives an upgraded pump package designed to maintain consistent pressure, converter charge, and lubrication under increased load.

Includes:

Upgraded pump gears
New pump bushing
Pump body and stator inspected and reconditioned
Pump clearances restored to specification
Updated pressure-regulator components
Increased converter feed capacity
Improved line-to-lube circuit
Improved overdrive lubrication
Updated drainback components

⚙️ HEAVY-DUTY PERFORMANCE VALVE BODY

✔️ TransGo Heavy-Duty Reprogramming Package

Performance calibrated for:

Increased clutch holding pressure
Faster clutch application
Positive shifts under load
Improved line-pressure control
Increased converter charge
Improved converter feed capacity
Improved cooling and lubrication flow
Improved manual-low holding capacity
Heavy-duty towing and performance operation

Provides positive, controlled shifts without unnecessarily harsh street operation.

✔️ Updated Solenoid Pack

Updated electronic shift and pressure-control components provide consistent hydraulic and shift control.

❄️ PUNISHER™ COOLING & LUBRICATION PACKAGE

High horsepower, towing, hauling, and heavy vehicle loads generate substantially more transmission heat.

The Punisher includes additional E4OD / 4R100 lubrication and cooling upgrades:

✔️ Improved line-to-lube circuit

✔️ Increased converter feed and charge capacity

✔️ Improved overdrive planetary lubrication

✔️ Front lubrication and drainback improvements

✔️ Center-support lubrication and sealing updates

✔️ Increased oil flow to critical internal components

✔️ Derale High-Capacity Deep Transmission Pan

Increased fluid capacity
Added cooling capacity
Finned construction for improved heat dissipation
Built-in drain plug for easier service
Additional cooling for towing, hauling, performance, and severe-duty use

🚙 BILLET PERFORMANCE TORQUE CONVERTER INCLUDED

✔️ Heavy-Duty Billet Single-Disc Lockup Converter

The Punisher includes a heavy-duty billet single-disc lockup torque converter matched to the vehicle and engine combination.

Built for:

High-performance street trucks
Modified small-block engines
Towing & hauling
Heavy vehicle loads
Off-road use
Increased lockup durability
Higher horsepower applications

Stall speed is matched to the engine, vehicle, gearing, tire size, and intended use.

🔥 Billet Triple-Disc Lockup Converter Available

For customers running higher torque, aggressive tuning, boosted applications, heavy towing, large tires, or severe-duty combinations, a billet triple-disc lockup converter is available as an upgrade.

The triple-disc converter provides increased lockup clutch capacity for applications that regularly place substantially higher loads on the converter clutch.

🛠️ E4OD / 4R100 SMALL BLOCK APPLICATIONS

The Twisted Punisher™ is built for compatible E4OD and small-block gas 4R100 applications.

Ford F-Series

F-150
F-250
F-350

Ford Bronco

5.0L / 302
5.8L / 351W

Ford Econoline / E-Series

E-150
E-250
E-350

Small Block Ford Engines

5.0L / 302
5.8L / 351W
Modified Windsor-based applications

Available Configurations

2WD
4WD

E4OD and 4R100 configurations vary by year, engine, case, output shaft, electronics, and vehicle application.

Transmission configuration and vehicle fitment must be verified before ordering.

⚠️ COOLING REQUIREMENT

A properly sized auxiliary transmission cooler is REQUIRED.

The transmission cooler and cooler lines must be professionally flushed and verified for unrestricted flow before installation.

For contaminated, restricted, or questionable factory coolers, replacement is strongly recommended.

High horsepower, towing, hauling, oversized tires, increased vehicle weight, higher-stall converters, and off-road operation can substantially increase transmission temperature.

Proper cooling is critical to E4OD / 4R100 transmission and torque converter life.
