🔥 TWISTED PUNISHER™ 200-4R PERFORMANCE OVERDRIVE CONVERSION PACKAGE

Rated Up To 650 HP

Billet-Reinforced • Street / Strip Ready • Complete Overdrive Conversion Package

GM 200-4R • Universal Multi-Fit Bellhousing (BOP + Chevy)

The Twisted Punisher™ 200-4R Conversion Package is engineered for serious street and strip vehicles producing up to 650 horsepower.

Designed for turbocharged applications, nitrous combinations, aggressive street cars, heavy vehicles, and high-performance restomods, the Punisher™ represents the highest-performance 200-4R package offered by Twisted Torque.

This is NOT a mild street build.

The Punisher™ combines billet-reinforced internals, increased clutch capacity, aggressive hydraulic calibration, and a matched performance converter while retaining the overdrive functionality that makes the 200-4R such a popular platform.

🔧 TWISTED PUNISHER™ PERFORMANCE BUILD PACKAGE

✔ BILLET INPUT SHAFT

Critical upgrade for reliability in high-horsepower applications and aggressive launches.

✔ Twisted Torque™ Extreme-Duty Clutches & Steels

High-capacity clutch system designed for sustained heat and elevated torque levels.

✔ Increased Direct Clutch Capacity

✔ Increased Forward Clutch Capacity

✔ Increased Overdrive Clutch Capacity

✔ Heavy-Duty Wide Performance Band

Designed for aggressive street and strip use.

✔ SUPER SERVO UPGRADE

Increased band apply force for stronger, more consistent shifts.

✔ .570 PERFORMANCE BOOST VALVE

Raises line pressure to maximize clutch and band holding power.

✔ 27-Element Intermediate Sprag Assembly

Improved durability and holding capacity under severe operating conditions.

✔ Twisted Torque™ Aggressive Valve Body Calibration

Fast, positive shifts with reduced clutch overlap and maximum holding power under load.

✔ New High-Flow Performance Filter

Improves lubrication and cooling under sustained load.

⚙️ HARD PART & INTERNAL UPGRADES

✔ Hardened Heavy-Duty Sun Shell

Helps eliminate a common OEM failure point during aggressive operation.

✔ Heavy-Duty Stator Support Assembly

Improves internal strength and durability under elevated torque loads.

✔ High-Volume 10-Vane Performance Pump Assembly

Includes:

• Hardened Pump Rings

• Teflon-Coated Bushings

• Enlarged Lubrication Circuits

• Corrected Internal Clearances

• Blueprinted For Pressure Stability At Elevated RPM

✔ Complete Performance Bushing Package

Maintains proper oil control and internal clearances.

✔ Torrington Bearing Upgrades Where Applicable

Reduced friction and improved durability at elevated RPM.

⚙️ HYDRAULIC & DURABILITY UPGRADES

✔ Updated Accumulator Calibration

✔ Optimized Checkball Configuration

✔ High-Temperature Seals & Gaskets Throughout

✔ Endplay Set To Twisted Torque™ Specifications

✔ New Internal Electrical Components

✔ Pressure Tested Prior To Shipment

✔ Leak Checked Prior To Shipment

This calibration is designed to hold power reliably, not simply provide firm shifts.

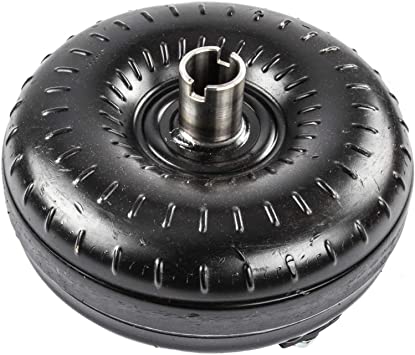

🔥 INCLUDED PERFORMANCE TORQUE CONVERTER

✔ Performance Lock-Up Torque Converter Included

✔ 2500–2800 Stall Speed Included

✔ Matched To Customer Combination

✔ Excellent Street & Strip Performance

✔ Turbo & Nitrous Compatible

✔ Improved Launch Characteristics

✔ Maintains Overdrive Drivability

Higher stall speeds, billet converters, and custom converter options available.

🔩 UNIVERSAL GM MULTI-FIT BELLHOUSING

The 200-4R features a true multi-fit bellhousing allowing direct bolt-up to:

✔ Small Block Chevy

✔ Big Block Chevy

✔ Buick

✔ Oldsmobile

✔ Pontiac

✔ GM V6 Applications

Making it one of the most versatile overdrive transmissions ever produced.

Perfect for cross-platform swaps, turbo Buick builds, and high-performance GM applications.

🚗💨 COMPLETE OVERDRIVE CONVERSION PACKAGE INCLUDED

Everything required to convert from a TH350, TH400, Powerglide, or other GM automatic transmission is included:

✔ Edelbrock or Holley TV Linkage (Application Dependent)

✔ TV Cable

✔ Speedometer Setup

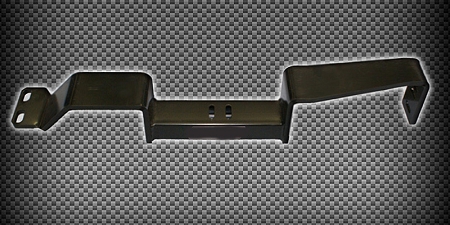

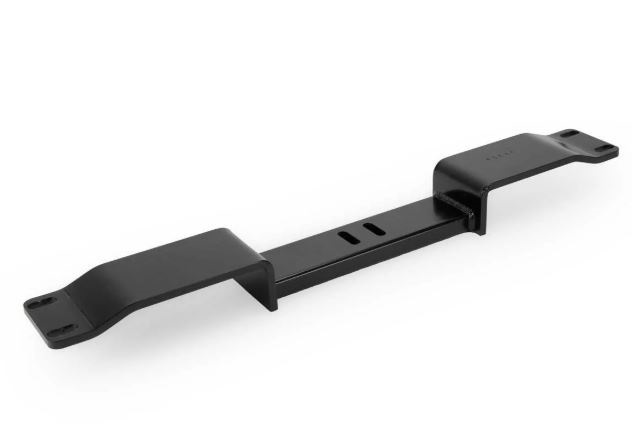

✔ Transmission Mount

✔ Dust Cover

✔ Dipstick & Tube

✔ Throttle Bracket

✔ Torque Converter Bolts

✔ Lock-Up Wiring Kit

✔ HD Transmission Cooler

✔ Two (2) Cans Transmission Cooler Flush

📌 Please include tire size and rear differential ratio in your order notes for proper speedometer calibration.

⚙️ 200-4R GEAR RATIOS

✔ 1st Gear: 2.74

✔ 2nd Gear: 1.57

✔ 3rd Gear: 1.00

✔ 4th Gear (Overdrive): 0.67

These ratios provide strong launch characteristics while maintaining comfortable highway cruising RPM.

⭐ PERFECT FOR

✔ High-Output Street & Strip Vehicles

✔ Turbocharged Applications

✔ Nitrous-Assisted Combinations

✔ Aggressive Restomods

✔ Heavy Vehicles Requiring Overdrive

✔ Customers Seeking Maximum Performance From The 200-4R Platform

✔ Street Cars Wanting Overdrive Without Sacrificing Strength

🛠 BUILT THE TWISTED TORQUE™ WAY

Each Twisted Punisher™ 200-4R Conversion Package:

✔ Custom Built For Your Application

✔ Uses Billet-Reinforced Performance Components

✔ Receives Twisted Torque™ Hydraulic Calibration

✔ Thoroughly Inspected Throughout Assembly

✔ Pressure Tested Prior To Shipment

✔ Includes Technical Support

📞 Technical Support: 833-858-9612

🔒 IMPORTANT POWER NOTE

Rated Up To 650 HP.

The Twisted Punisher™ represents the practical upper-performance range of the factory-based 200-4R platform.

For applications exceeding 650 horsepower, we strongly recommend stepping up to a:

✔ TH400

✔ 4L80E

for maximum durability and long-term reliability.
