🔥 Twisted Street™ 200-4R Overdrive Conversion Package

Rated 350–450 HP

Complete Street Overdrive Package for Classic GM Applications

Swapping a TH350, TH400, Powerglide or other 3-speed to overdrive? The Twisted Street™ 200-4R Conversion Package gives you our upgraded Street 200-4R, new lock-up converter and the main parts needed to complete the conversion.

Our Street 200-4R is a stock-based build with the factory problem areas addressed. We upgrade the friction material, rebuild and update the pump, install a mild TransGo or Superior shift kit and go through the valve body and hydraulic system.

Built for street use with a clean, firm shift. No race calibration and no unnecessary billet parts.

Rated 350–450 HP depending on engine torque, vehicle weight and intended use.

NEW 1650 RPM stock-stall lock-up torque converter included.

🔧 TWISTED STREET™ 200-4R BUILD

PREMIUM FRICTIONS & STEELS

• High-energy friction clutches
• New steels
• New seals and sealing rings
• Clutch clearances checked and set

We retain the stock clutch configuration on the Street build.

STAGE 1 SHIFT KIT

Every Street 200-4R gets a mild TransGo or Superior shift kit.

This addresses common 200-4R shift and hydraulic issues and firms up the shifts without making it harsh.

• Firmer, cleaner shifts
• Improved pressure control
• Better clutch and band apply
• Improved TV pressure response
• Full automatic operation retained

REBUILT & UPDATED PUMP

Pump is completely torn down, inspected and rebuilt.

• New pump bushing
• Hardened pump rings
• Pump vanes checked and replaced as needed
• Pump slide and related components inspected
• Pressure regulator and boost circuits checked
• Pump clearances checked and set

VALVE BODY & HYDRAULICS

Valve body is completely disassembled, cleaned and inspected.

• Worn valve body components corrected as needed
• Accumulator system inspected and serviced
• TV and boost circuits checked
• TransGo or Superior Street updates installed
• Hydraulic circuits checked during assembly

BAND & SERVO

• New intermediate band
• Factory-style servo inspected and serviced
• Servo travel and band apply checked during assembly

Billet servos and more aggressive apply setups are used in our higher-level builds.

COMPLETE INTERNAL REBUILD

• New friction clutches
• New steels
• Complete bushing kit
• New sealing rings
• New lip seals
• New gaskets and seals
• New filter
• Pump rebuilt and updated
• Sprags and one-way clutches inspected and replaced as needed
• Bearings and thrust washers inspected and replaced as needed
• Drums, planets, shafts and other hard parts inspected
• Clutch clearances set
• Endplay checked and set

Any hard part that doesn't pass inspection gets replaced.

🔒 NEW 1650 RPM LOCK-UP CONVERTER

Includes a NEW 1650 RPM stock-stall lock-up torque converter.

Stock stall works well for mild street combinations and keeps normal around-town driving and highway manners.

Higher-stall converters are available if your engine combination calls for one.

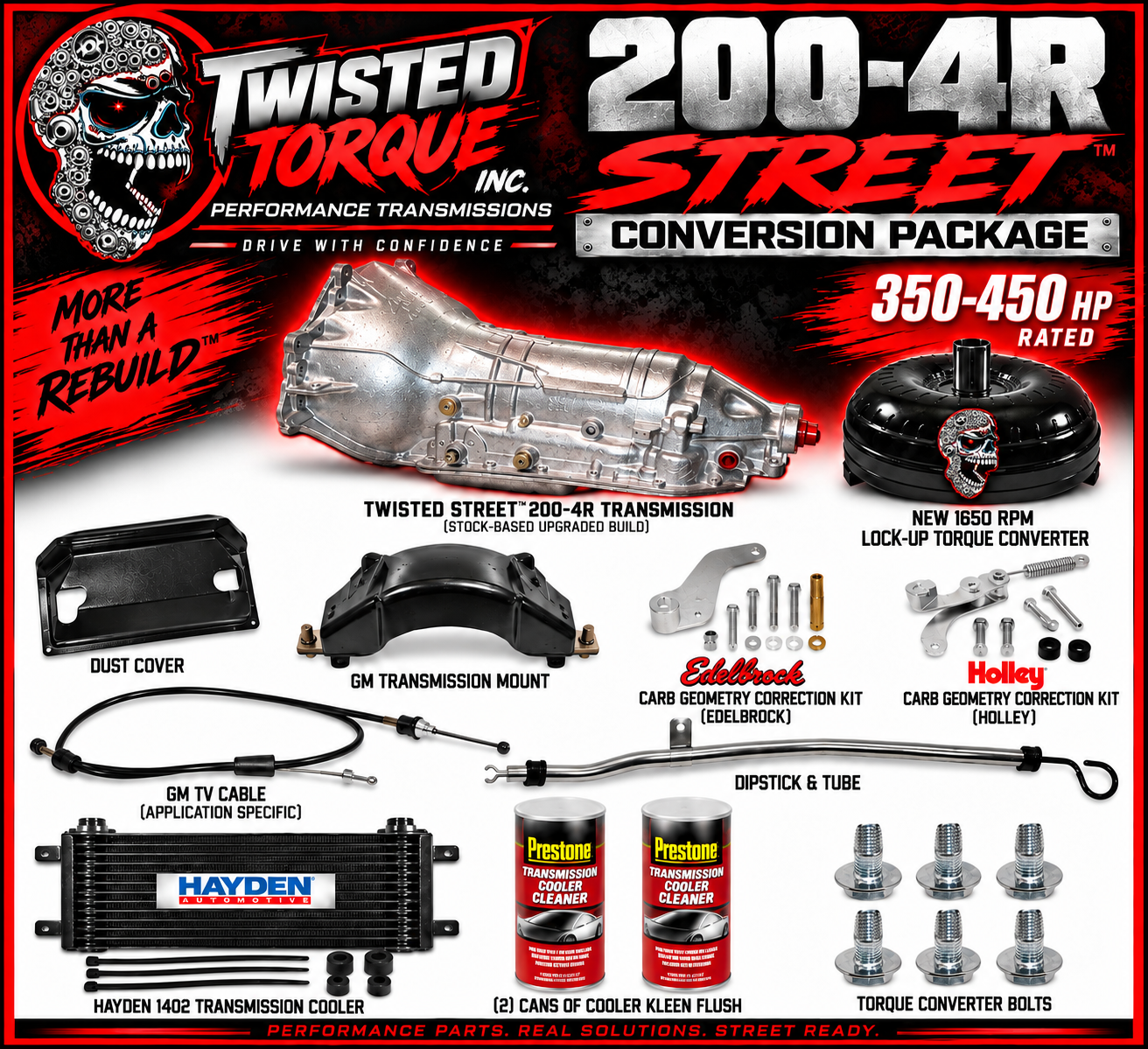

📦 COMPLETE CONVERSION PACKAGE

PACKAGE INCLUDES

✔ Twisted Street™ 200-4R Transmission

✔ NEW 1650 RPM Stock-Stall Lock-Up Converter

✔ Edelbrock or Holley TV Geometry Correction Kit

Selected for carburetor/throttle setup

✔ NEW TV Cable

✔ 4th-Gear Lock-Up Wiring Kit

✔ Speedometer Gear Package

✔ Transmission Mount

✔ Dust Cover

✔ Dipstick & Tube

✔ Throttle Cable Bracket

✔ Torque Converter Bolts

✔ Transmission Cooler

✔ Two Cans of Cooler Flush

⚠️ 200-4R TV CABLE SETUP

The TV cable is not a kickdown cable.

It controls line pressure and shift operation. Incorrect TV cable adjustment or incorrect carburetor/throttle geometry can burn up a 200-4R.

That's why the conversion package includes the TV cable and geometry correction components for the application.

TV cable geometry and adjustment must be set correctly during installation.

⚡ 4TH-GEAR CONVERTER LOCK-UP

The package includes a simple 4th-gear lock-up wiring setup.

The converter can be wired for automatic lock-up in 4th gear or incorporated into a brake-switch/manual-switch setup depending on the vehicle.

BEFORE WE BUILD IT

We need:

• Year / Make / Model
• Engine
• Estimated horsepower
• Rear gear ratio
• Rear tire size
• Carburetor or EFI
• Naturally aspirated or power adder
• Intended use

This lets us make sure you're getting the right transmission and conversion components for the car.

GM MULTI-PATTERN BELLHOUSING

The 200-4R factory multi-pattern case fits many:

✔ Chevrolet

✔ Buick

✔ Oldsmobile

✔ Pontiac

Always verify application before ordering.

200-4R GEAR RATIOS

1st: 2.74

2nd: 1.57

3rd: 1.00

4th: 0.67 Overdrive

The 0.67 overdrive is a big advantage when converting an older 3-speed car. You keep a good 2.74 first gear and get the lower highway RPM of overdrive.

COMMON APPLICATIONS

✔ Small Block Chevy

✔ Big Block Chevy

✔ LS Swaps

✔ Monte Carlo SS

✔ Malibu

✔ El Camino

✔ Cutlass / 442

✔ Regal

✔ GTO / LeMans

✔ Firebird

✔ G-Bodies

✔ Classic GM Muscle Cars

✔ Street Rods

✔ Restomods

WHAT YOU GET

✔ 350–450 HP Street 200-4R

✔ High-Energy Frictions

✔ New Steels

✔ Mild TransGo or Superior Shift Kit

✔ Rebuilt & Updated Pump

✔ Hardened Pump Rings

✔ Valve Body Serviced & Updated

✔ Complete Bushing & Seal Package

✔ NEW 1650 RPM Lock-Up Converter

✔ TV Cable & Geometry Correction Kit

✔ 4th-Gear Lock-Up Wiring

✔ Speedometer Gear Package

✔ Transmission Mount

✔ Dust Cover

✔ Dipstick & Tube

✔ Throttle Cable Bracket

✔ Converter Bolts

✔ Transmission Cooler

✔ Two Cans of Cooler Flush

✔ Pressure Tested Before Shipping

✔ Technical Support

✔ Backed by Our Warranty

NEED MORE POWER?

🔥 Twisted Pro™ 200-4R

Rated 500–550 HP

Higher-capacity street build with additional clutch and hard-part upgrades.

💀 Twisted Punisher™ 200-4R

Rated 550–650 HP

Billet hard parts, increased clutch capacity and additional hydraulic upgrades for serious street and street/strip use.

☠️ Twisted Executioner™ 200-4R

Our top-level 200-4R build for high-horsepower and competition applications.
